Cross-country racing isn’t what it used to be, and bikes are evolving to better suit the modern era. The climbs are still brutal, but the descents have become much more technical. Canyon has clearly been paying attention.
Today, they officially launch the latest evolution of their championship-winning XC flagship: the Lux World Cup CFR. The goal here was simple: make it faster, lighter, and more capable than anything that came before it.
Canyon
Overview
- Travel: 120mm Front, 110mm rear
- Weight: Frame as little as 1,480 grams (3.3 pounds). Complete bike weights are now as low as 9.82 kg or 21.6 pounds (size M)
- Headtubeangle: 66 degrees
- Seattubeangle: 75.5 degrees
- Chainstays: 435mm
- Reach: 415mm to 495mm (20mm increments)
- Stack: 596-620mm

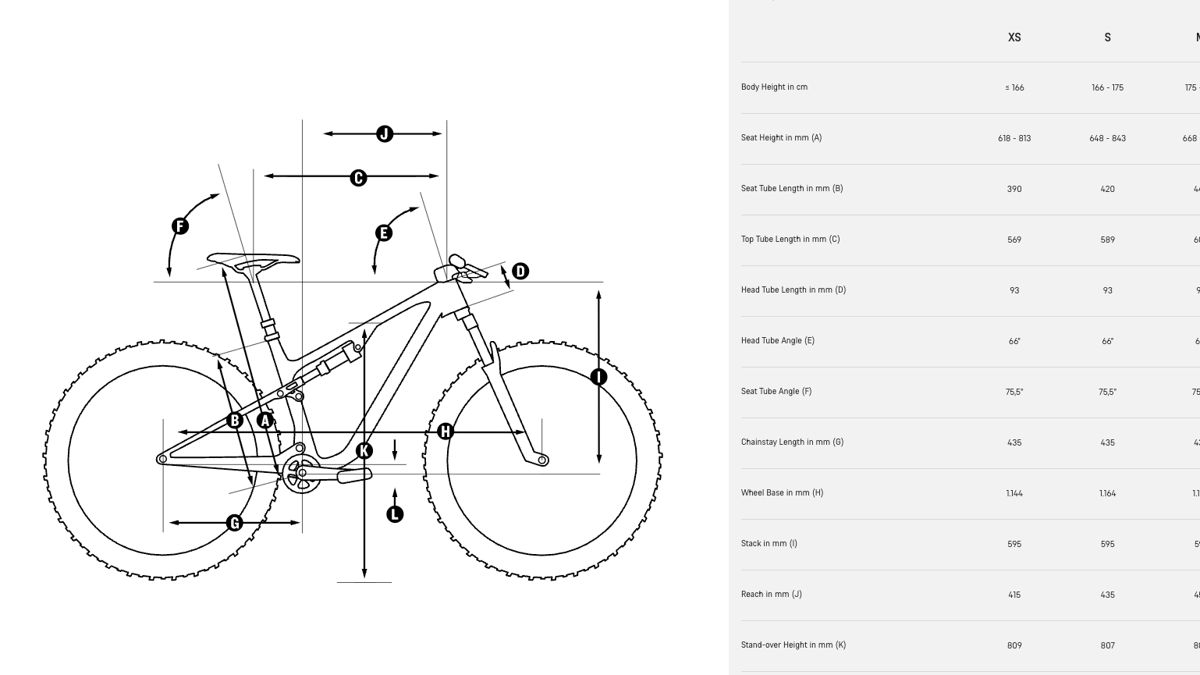

Geometry and Travel
The most significant shift in the new Lux is Canyon’s emphasis on descending performance. Following the industry trend toward more aggressive XC geometry, Canyon has slackened the head angle by a full 2.5 degrees, bringing it down to 66°. They’ve also stretched the wheelbase by roughly 40mm.
Canyon
Canyon
View the 2 images of this gallery on the
original article
To match that new geometry, the suspension gets a bump in travel. The new Lux now has 120mm up front and 110mm in the rear. According to Canyon pro Luca Schwarzbauer, that extra capability is about more than just speed—it’s about recovery. If you can relax on a technical descent because your bike isn’t trying to buck you, you’ll have more in the tank for the next climb.
Weight and “Flip Chip”
Despite the extra travel and more robust geometry, this is still very much an ultralight race bike. Canyon managed to shave 55 grams off the previous CFR frame, bringing the size Medium frame weight down to just 1,480 grams (3.3 pounds). For those counting every gram, complete bike builds are weighing in at as low as 9.8 kilograms (21.6 pounds).
Canyon

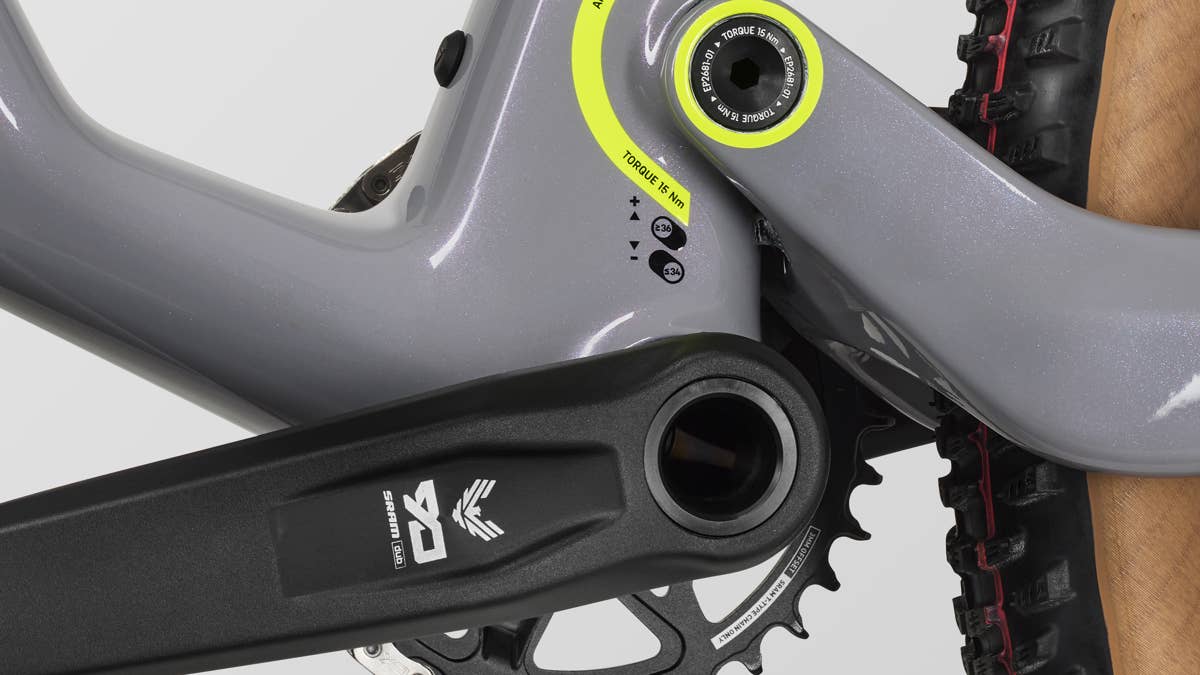

The most interesting technical addition is the adjustable anti-squat flip chip. This allows riders to fine-tune pedaling efficiency and suspension feel based on their specific gearing or the day’s terrain. It’s a level of granularity we don’t often see in the XC world, and it should make the Lux a very versatile bike for everything from short-track sprints to marathon epics.
Canyon
Canyon isn’t just relying on lab data for this launch. The Lux World Cup CFR has been hiding in plain sight under some of the world’s fastest riders. In 2026, Luca Schwarzbauer and Sam Gaze took three stage wins at the Cape Epic on unreleased prototypes. Even more impressive, Jenny Rissveds swept all eight stages of the Cape Epic aboard the new CFR while racing in the Mixed Pairs category.
Pricing and Availability
Prices range from $3,399 USD to $9,499 USD. The new LUX CF and CFR bikes are available in four models here in the USA: Two World Cup CFR models with SRAM or Shimano. There are also two CF models: the CF9 and CF7, at the more affordable end of the spectrum.
The CF build kits feature mechanical drivetrains – one from SRAM and one from Shimano- and the CFR builds follow that same structure, but tap into AXS and Di2, respectively. The fact that these two top-tier builds are under $10K is pretty incredible, especially given the specs and weight they claim.
Explore the all-new Canyon LUX CF and CFR models at Canyon.com
