Inside The Specialized Bicycles Demo 11: Peak Downhill Race Bike

There has been a lot of secrecy around the new Specialized Bicycles Demo, but not so much that we don’t know anything about it. There’s been a lot of talk about when we’d see a new Demo, with the last major update to the brand’s flagship downhill bike coming in 2020, when it embraced the MX-wheels trend.

The new Demo 11 has been raced under the Specialized Gravity Team as a prototype for a while now, so we’ve had a pretty good look at all the iterations. But what we haven’t seen is what’s going on underneath the shrouds and sleeves. That is, until today, as Specialized announced the all-new Demo 11.

Specialized is introducing the next era of its Demo. A name that has been a pillar in downhill racing forever. The Demo has seen countless podiums and is a go-to for privateers. The 11th installment of the Demo gets a makeover with a slacker head tube angle, proportionate rear centers, and some really interesting stuff going on towards the bottom bracket that seems like a pragmatic evolution of all the wacky gearboxes we saw in the early oughts with Cannondale Volvo, Honda, Brodie, GT, and many more.

Demo 11 Details

• Frame: FACT 11m Carbon
• Suspension:
  OBB Linkage, 24% Progression
  HighGear Jackshaft System
  +30mm bottom bracket clearance over the previous model
• Mixed wheels only
• Geo: 62.5 Head tube angle, and proportional front/rear centers
• Sizes: S3, S4, S5
• Price: $11,000 (Complete) / $6,500 (Frameset)

HighGear

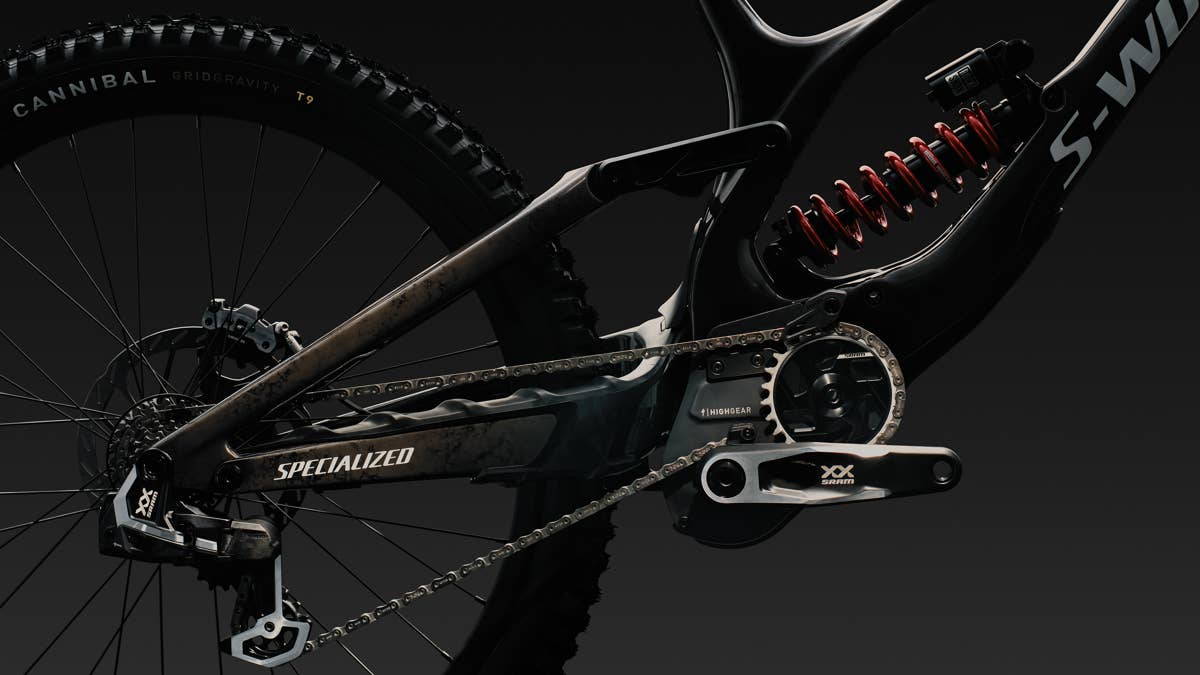

Specialized is calling this new system “HighGear”, and it’s the culmination of Specialized and SRAM teaming up to create a patent-pending system that works alongside the OBB linkage to make for a more consistent axle path and address the effects of drivetrain interference with the suspension travel. A compact chainring drives a jackshaft, which then transfers power to a final-drive ring positioned higher in the frame. It’s kind of like a high pivot with an idler, but in the mechanically impressive way that Specialized wanted to make it happen.

Why does this matter? Two reasons:

1. Clearance: You get 30mm more ground clearance than the previous Demo. That’s the difference between clearing a stump and an “over-the-bars” special.
2. Suspension Independence: Because the final drive ring is precisely located, chain forces are decoupled from the suspension. In plain English: zero pedal kickback. You can smash through square-edge hits and the suspension stays fully active, regardless of whether you’re pedaling or coasting.

The OBB Linkage: Pull to Push

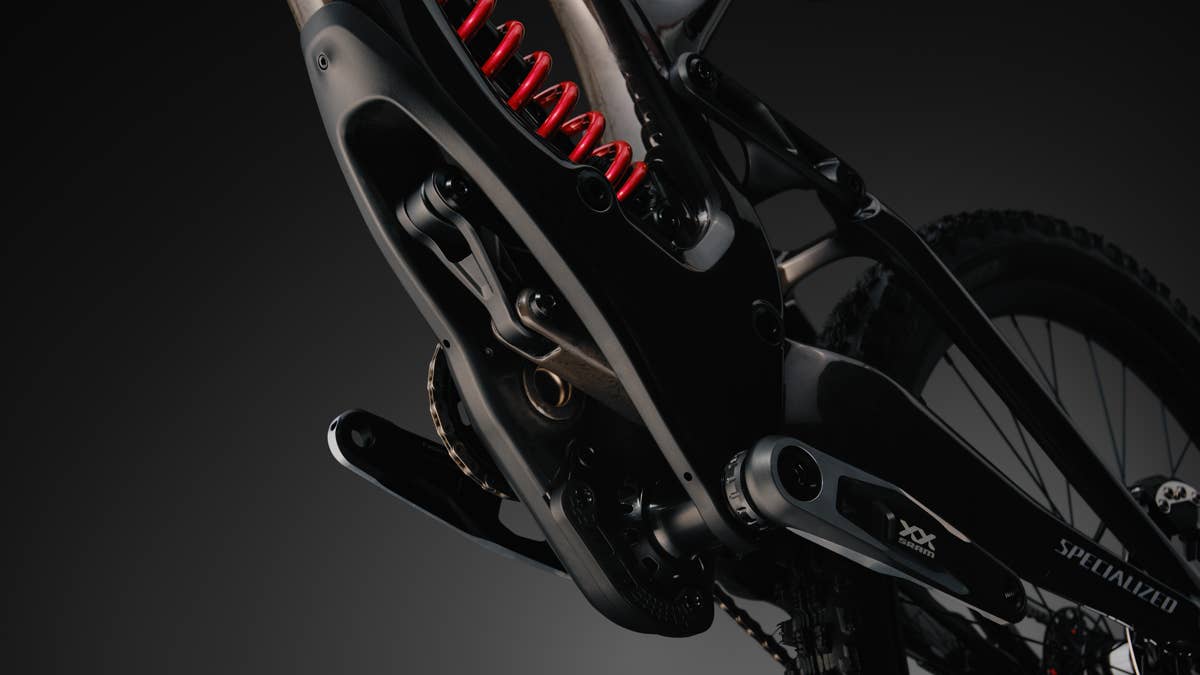

The Demo 11 debuts the OBB (Over Bottom Bracket) suspension system. This system, working with the HighGear, means that the Demo 11 has a pretty extreme axle path that pushes the rear axle almost 15mm back over the 200mm of travel before returning to center near the bottom of the stroke.

Specialized uses a wagon analogy here: it’s easier to keep a wagon straight by pulling the handle than by pushing it from behind. This “self-aligning” chassis is designed to keep the rear wheel tracking straight under extreme lateral loads. This combats the feeling of the rear end “walking” out from under you in a high-speed chatter turn; this is the supposed cure.

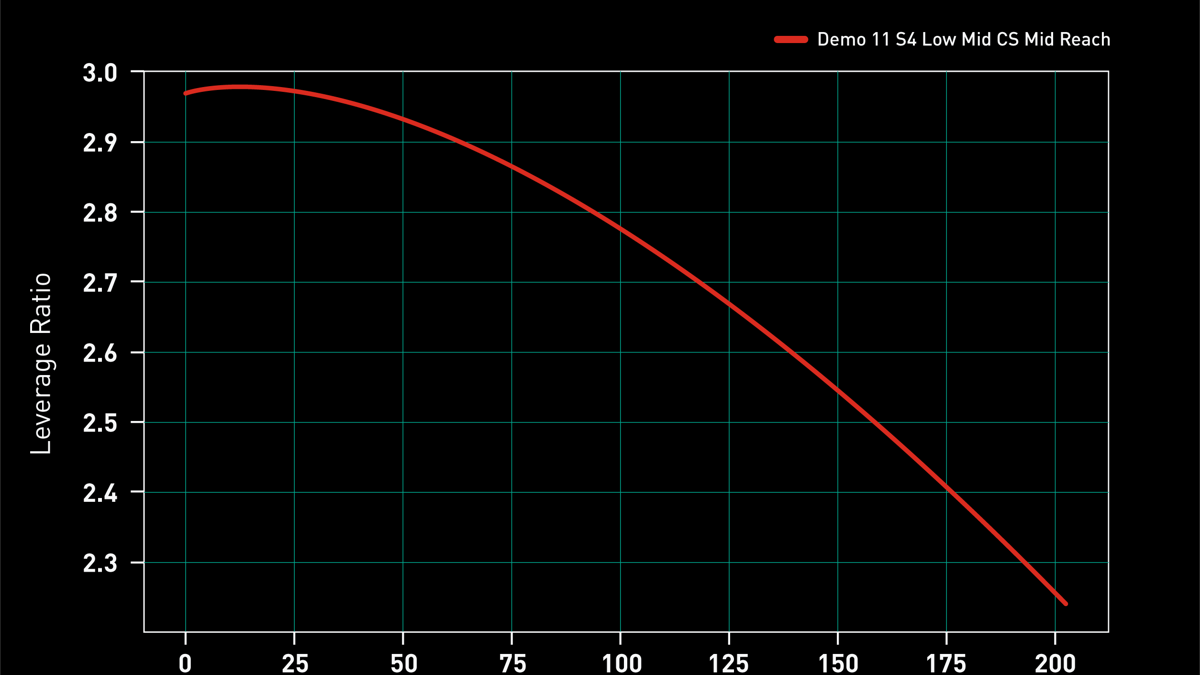

The leverage curve sits at a 24% progression, which is the sweet spot for that “bottomless” feel without losing the mid-stroke support needed to pump for speed.

View the 2 images of this gallery on the
original article

Geometry

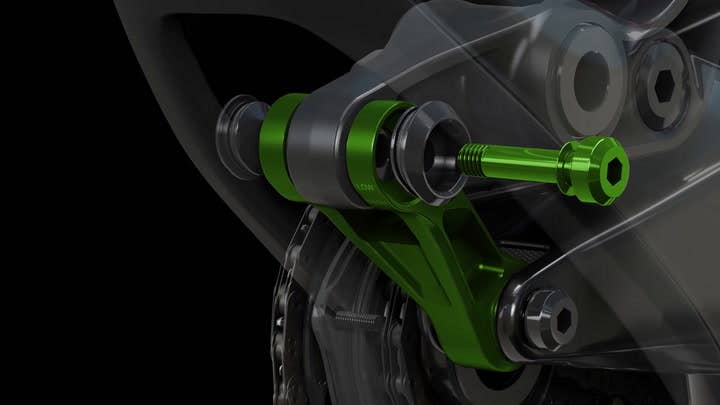

Specialized knows that a bike meant for the World Cup needs to be a chameleon. The FACT 11m carbon frame features an adjustable front center, allowing riders to adjust their reach by ±6mm via the headset cups. The Demo 11 also has size-specific rear centers across the three frame sizes. S3, S4, and S5 frames all have unique chainstay lengths (435mm to 455mm) to ensure consistent weight balance, whether you’re 5’8″ or 6’4″. Adjustable BB has a 7mm flip-chip that lets you choose between a low (348mm) and high setting (355mm) depending on what you want.

Pricing

A Race Bike at Race Bike Prices

The Demo 11 is a pure-bred racehorse, which makes sense since it was developed in conjunction with the Specialized Gravity Team, and it carries a price tag to match. The S-Works Demo 11 complete build will set you back $11,000 USD, while the frameset (for those who already have a preferred build kit) lands at $6,500.

Is it overkill for your local bike park? Probably. But for the rider looking to shave tenths off a race clock – or the gear nerd who wants the most advanced suspension kinematics currently available to the public. The Demo 11 is a race bike, and we likely won’t be seeing it drop in at Rampage or show up at DarkFest.
